Vocal Feature Analyses

Author

Jeffrey Girard

Published

October 5, 2026

Setup

Packages

Code

library(tidyverse)
library(easystats)
library(brms)
library(flextable)
library(patchwork)

Data

Code

# Deidentified features (one row per participant and task); see ../data/README.md
df_vocal <-
  # base R's parser restores every stored value exactly (readr's can differ in the last digit)
  read.csv(file.path("..", "data", "vocal.csv")) |>
  as_tibble() |>
  mutate(
    participant = factor(participant),
    source = factor(source, levels = c("clinic", "prolific")),
    ptsd = factor(ptsd, levels = c(0, 1)),
    demo_sex = factor(demo_sex, levels = c("Male", "Female")),
    demo_nonwhite = factor(demo_nonwhite, levels = c(FALSE, TRUE)),
    task = factor(task, levels = c("Account", "Impact"))
  ) |>
  arrange(participant, task)

# Effect-code every two-level factor (first level = -0.5, second = +0.5) so each main effect is averaged
# over the other factors (e.g., group = PTSD - Control averaged across tasks); interactions and predictions are unchanged
for (v in c("task", "ptsd", "demo_sex", "demo_nonwhite")) contrasts(df_vocal[[v]]) <- c(-0.5, 0.5)
dir.create("fits", showWarnings = FALSE)

# High-ICC models whose between-person (group) coefficient mixed slowly at 4000 iterations
long_run <- c("CPPS", "H1H2", "M_Voiced", "SD_Voiced", "PoseX", "AU15")

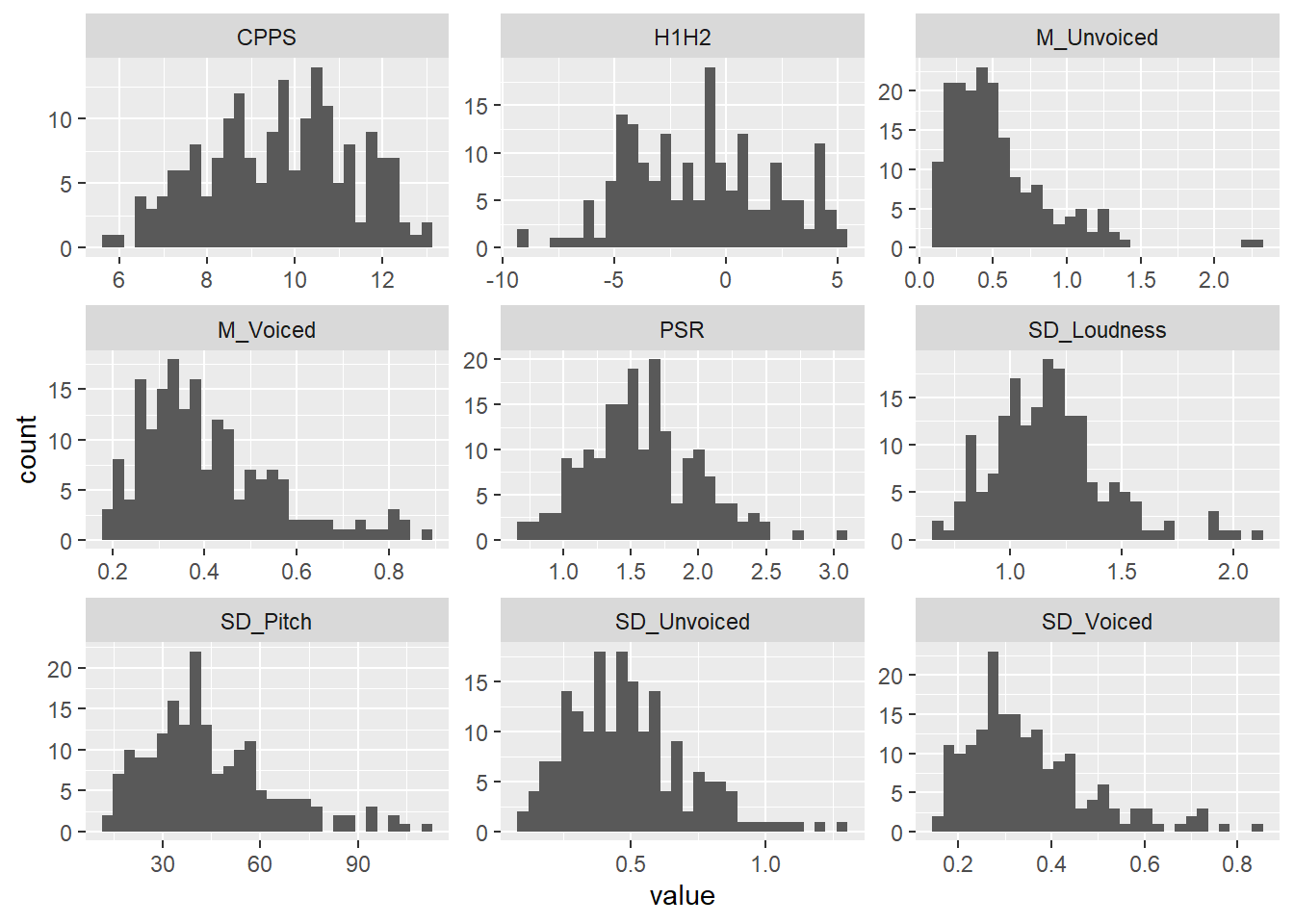

df_vocal |>
  select(SD_Loudness:H1H2) |>
  pivot_longer(cols = everything()) |>
  ggplot(aes(x = value)) +
  facet_wrap(~name, scales = "free") +
  geom_histogram(bins = 30)

Run Models

Gaussian Models

Code

gaussian_features <- c("CPPS", "H1H2")

gaussian_models <-
  gaussian_features |>
  set_names() |>
  map(
    \(feature) {
      model_formula <- as.formula(
        paste(feature, "~ task * ptsd + demo_age + demo_sex + demo_nonwhite + (1 | participant)")
      )
      brm(
        formula = model_formula,
        data = df_vocal,
        prior = set_prior("normal(0, 1)", class = "b"),
        seed = 2026,
        chains = 4,
        cores = 4,
        iter = if (feature %in% long_run) 8000 else 4000,
        warmup = 2000,
        refresh = 0,
        file = file.path("fits", feature),
        control = list(adapt_delta = 0.95, max_treedepth = 12),
        backend = "cmdstanr"
      )
    }
  )


iwalk(
  gaussian_models,
  \(model, name) {
    thisr2 <- r2(model)
    cat(
      "\n\n#### ",
      name,
      sprintf("(R2C = %0.2f, R2M = %0.2f)", thisr2$R2_Bayes, thisr2$R2_Bayes_marginal),
      "\n\n"
    )
    table_md <- print_md(model_parameters(model))
    cat(table_md, sep = "\n")
  }
)

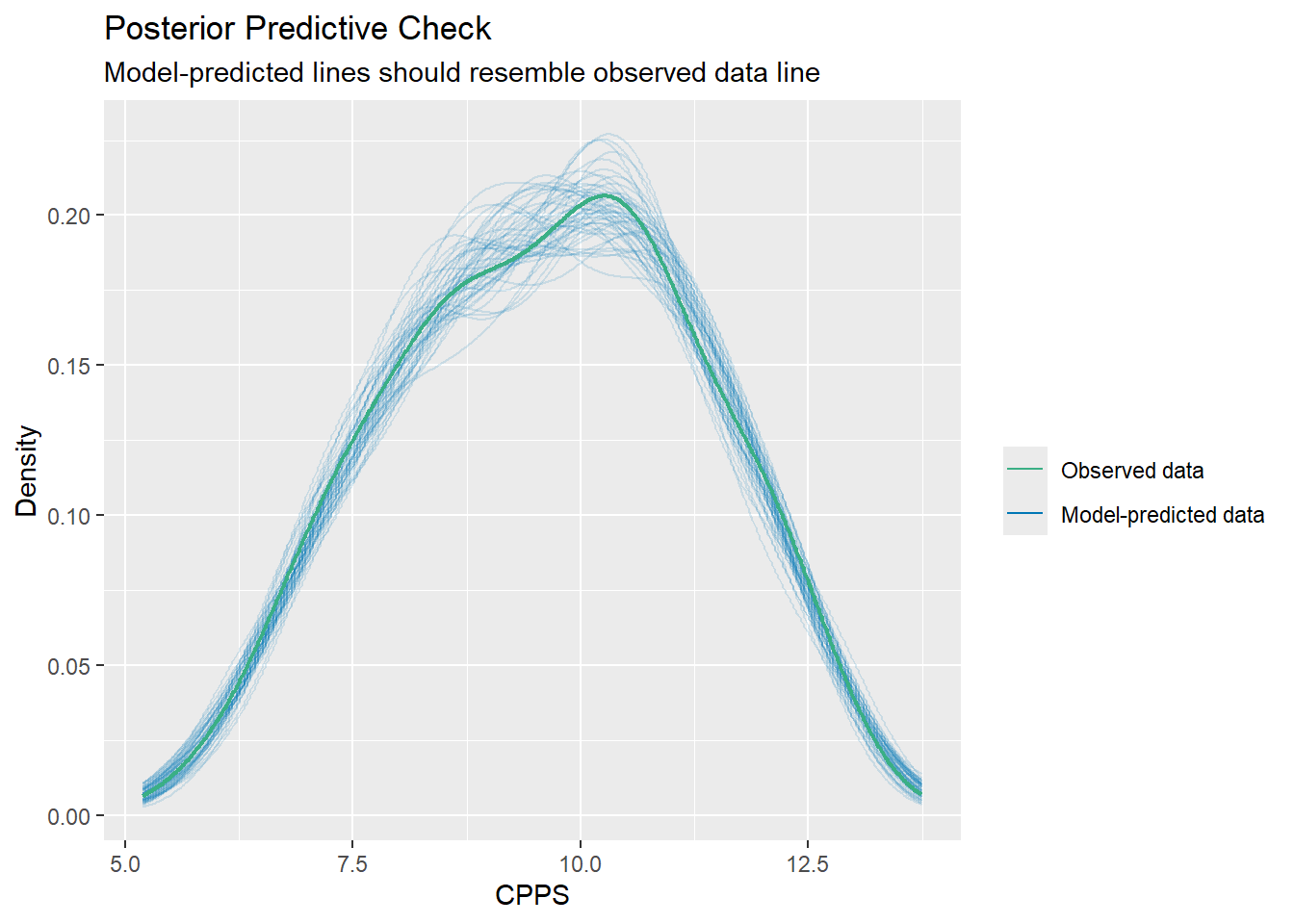

CPPS (R2C = 0.97, R2M = 0.13)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	10.66	(9.52, 11.75)	100%	1.004	1024
task1	-0.12	(-0.21, -0.03)	99.45%	1.000	13482
ptsd1	-0.57	(-1.27, 0.17)	93.41%	1.002	1731
demo_age	-0.02	(-0.05, 2.64e-03)	96.28%	1.002	1303
demo_sex1	0.80	(0.07, 1.53)	98.39%	1.005	1538
demo_nonwhite1	0.53	(-0.35, 1.36)	89.15%	1.005	1680
task1:ptsd1	-0.03	(-0.21, 0.15)	62.64%	1.000	13062

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.31	(0.27, 0.36)	100%	1.001	11774

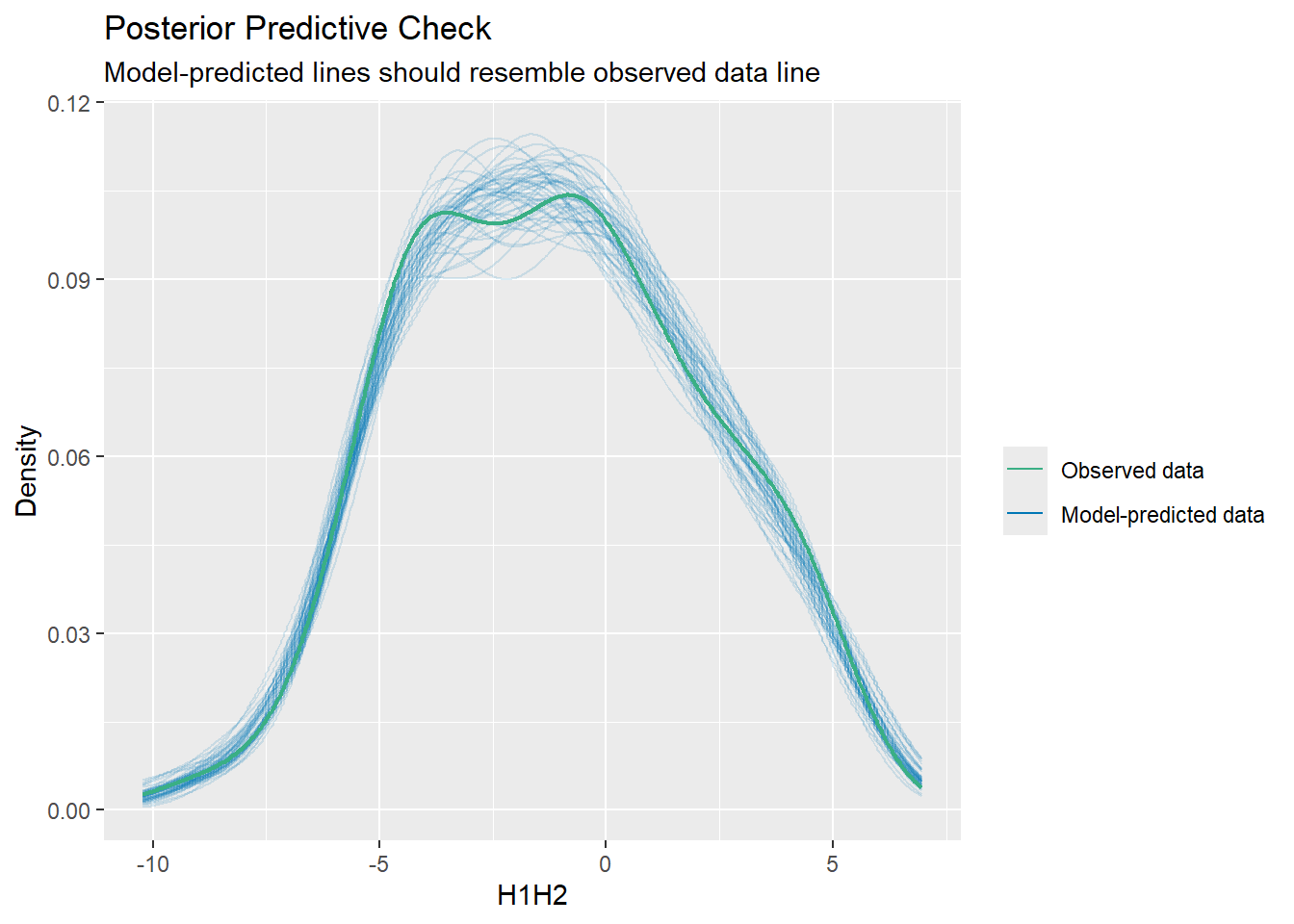

H1H2 (R2C = 0.97, R2M = 0.24)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	-3.00	(-4.95, -1.14)	99.88%	1.003	1999
task1	0.08	(-0.09, 0.25)	82.98%	1.000	14417
ptsd1	-1.01	(-2.09, 0.11)	96.20%	1.006	2302
demo_age	0.05	(4.83e-03, 0.09)	98.50%	1.003	1988
demo_sex1	-1.52	(-2.62, -0.37)	99.62%	1.008	2490
demo_nonwhite1	-0.54	(-1.78, 0.74)	79.32%	1.001	2955
task1:ptsd1	-0.64	(-0.96, -0.31)	99.99%	1.000	14993

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.57	(0.49, 0.66)	100%	1.000	10503

Lognormal Models

Code

lognormal_features <- c("SD_Loudness", "SD_Pitch", "PSR", "M_Voiced",
                       "M_Unvoiced", "SD_Voiced", "SD_Unvoiced")

lognormal_models <-
  lognormal_features |>
  set_names() |>
  map(
    \(feature) {
      model_formula <- as.formula(
        paste(feature, "~ task * ptsd + demo_age + demo_sex + demo_nonwhite + (1 | participant)")
      )
      brm(
        formula = model_formula,
        data = df_vocal,
        family = lognormal(),
        prior = set_prior("normal(0, 1)", class = "b"),
        seed = 2026,
        chains = 4,
        cores = 4,
        iter = if (feature %in% long_run) 8000 else 4000,
        warmup = 2000,
        refresh = 0,
        file = file.path("fits", feature),
        control = list(adapt_delta = 0.95, max_treedepth = 12),
        backend = "cmdstanr"
      )
    }
  )


iwalk(
  lognormal_models,
  \(model, name) {
    thisr2 <- r2(model)
    cat(
      "\n\n#### ",
      name,
      sprintf("(R2C = %0.2f, R2M = %0.2f)", thisr2$R2_Bayes, thisr2$R2_Bayes_marginal),
      "\n\n"
    )
    table_md <- print_md(model_parameters(model))
    cat(table_md, sep = "\n")
  }
)

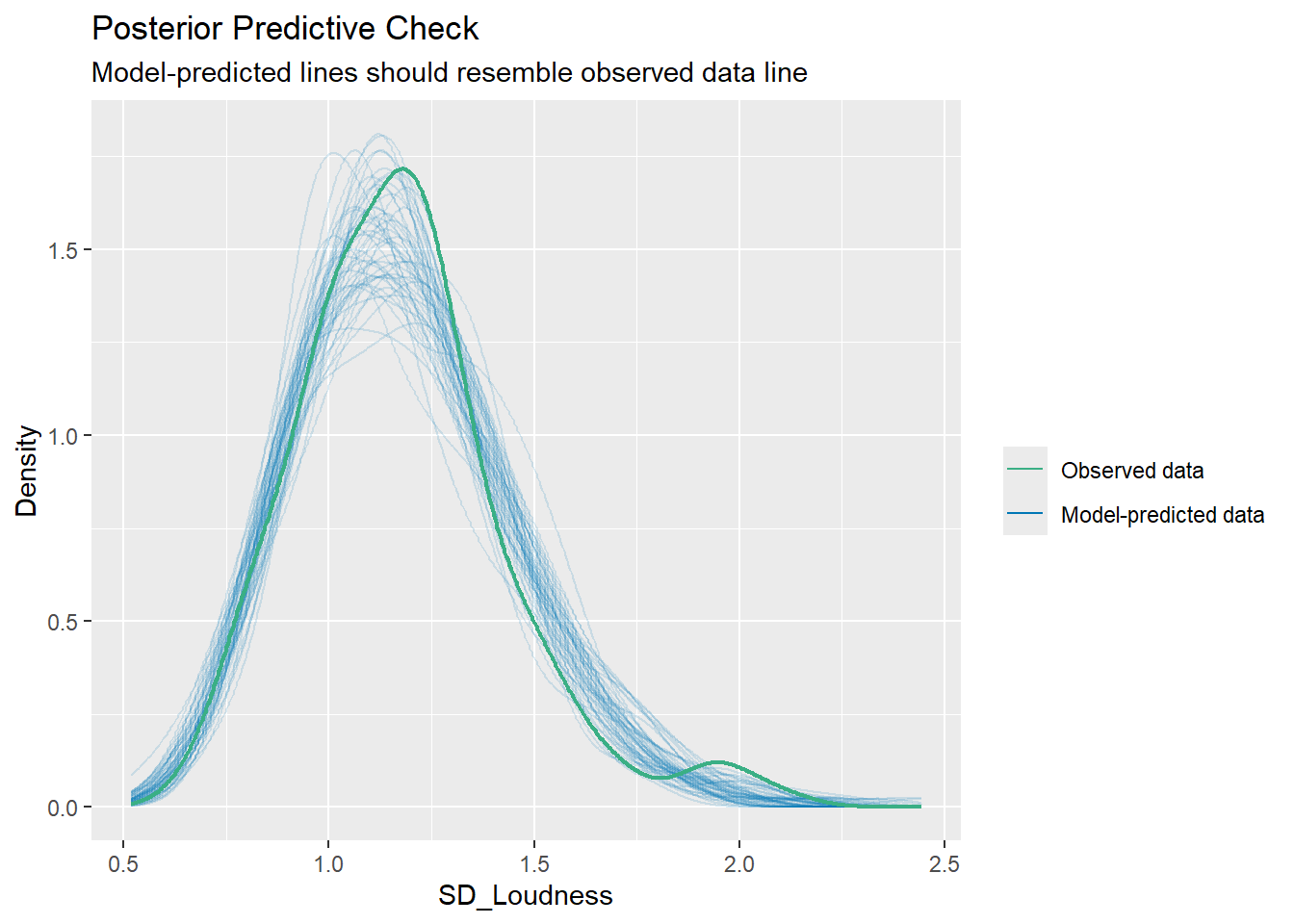

SD_Loudness (R2C = 0.67, R2M = 0.12)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	0.12	(-0.02, 0.24)	95.70%	1.003	4856
task1	0.09	(0.06, 0.12)	100%	1.000	5832
ptsd1	0.08	(-0.02, 0.18)	94.64%	1.001	4369
demo_age	3.00e-05	(-2.95e-03, 3.03e-03)	50.59%	1.002	4751
demo_sex1	0.05	(-0.04, 0.15)	88.11%	1.000	4341
demo_nonwhite1	-0.04	(-0.15, 0.07)	77.49%	1.000	4511
task1:ptsd1	-0.06	(-0.13, 4.54e-03)	96.62%	1.001	5182

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.12	(0.10, 0.14)	100%	1.001	5062

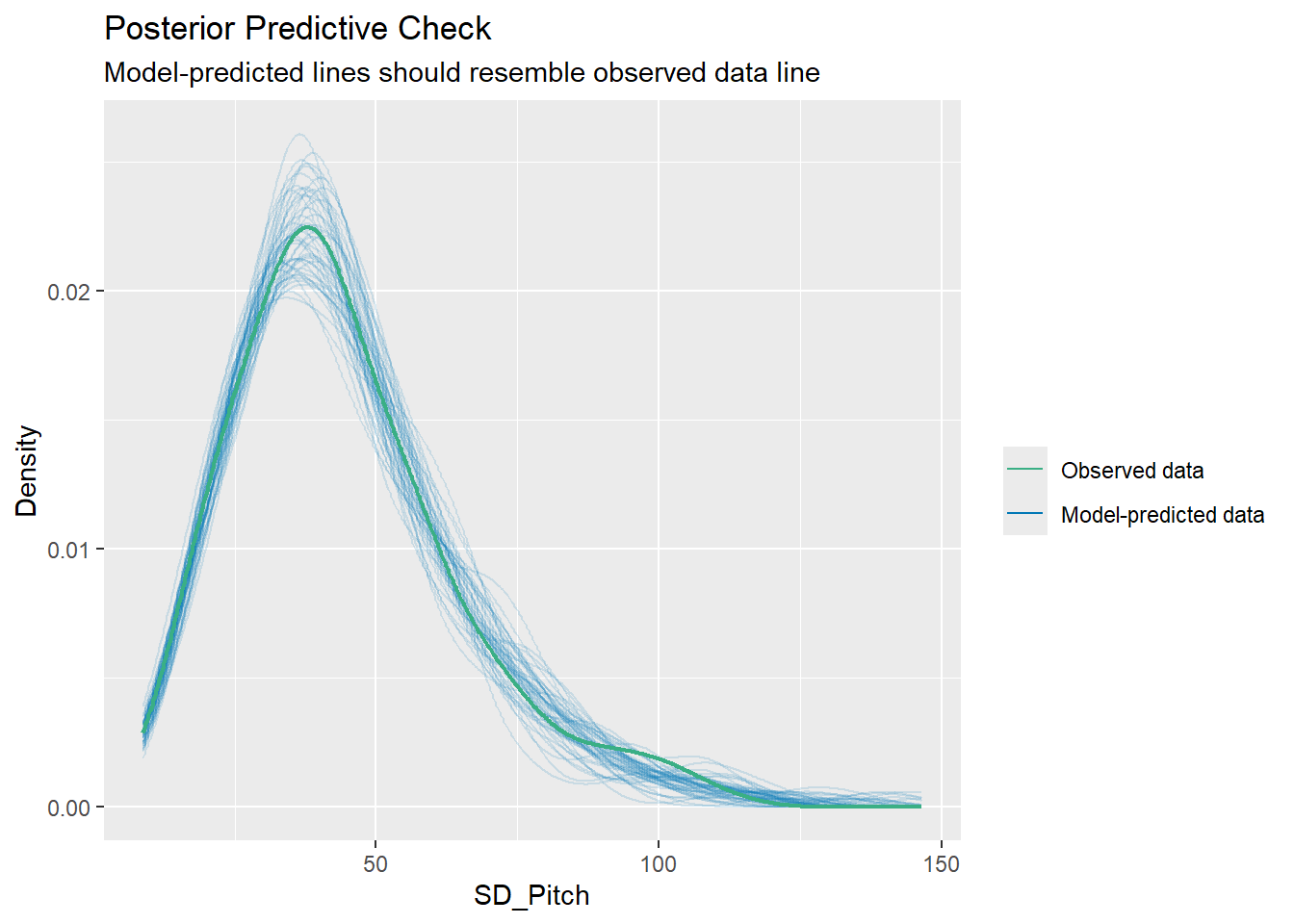

SD_Pitch (R2C = 0.90, R2M = 0.26)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	3.80	(3.54, 4.06)	100%	1.004	2192
task1	5.40e-03	(-0.03, 0.04)	60.24%	1.001	6143
ptsd1	0.15	(-0.03, 0.34)	95.36%	1.003	1953
demo_age	-4.00e-03	(-9.92e-03, 1.87e-03)	90.61%	1.005	2162
demo_sex1	0.39	(0.21, 0.57)	100%	1.003	2020
demo_nonwhite1	-8.47e-03	(-0.21, 0.21)	53.02%	1.007	2189
task1:ptsd1	0.04	(-0.04, 0.12)	82.26%	1.000	6166

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.14	(0.12, 0.16)	100%	1.000	4935

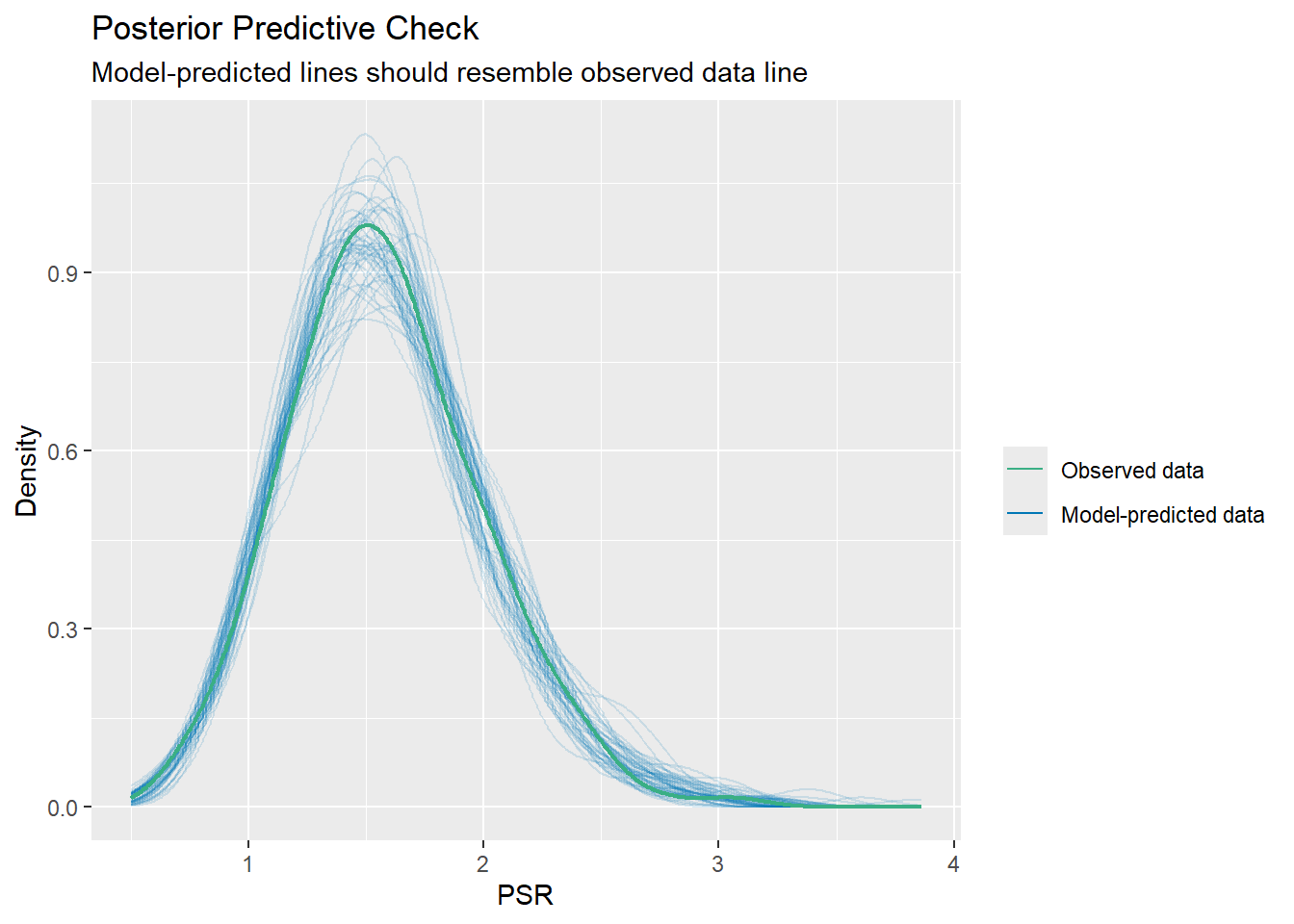

PSR (R2C = 0.85, R2M = 0.05)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	0.44	(0.26, 0.62)	100%	1.004	1932
task1	-0.03	(-0.06, 2.41e-03)	96.28%	1.000	6126
ptsd1	-0.03	(-0.16, 0.09)	66.75%	1.003	2214
demo_age	5.60e-04	(-3.85e-03, 4.55e-03)	60.08%	1.003	2054
demo_sex1	-0.02	(-0.15, 0.11)	61.79%	1.001	1477
demo_nonwhite1	0.08	(-0.07, 0.24)	85.30%	1.009	1928
task1:ptsd1	0.04	(-0.02, 0.10)	92.54%	1.001	6196

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.10	(0.09, 0.12)	100%	1.001	4911

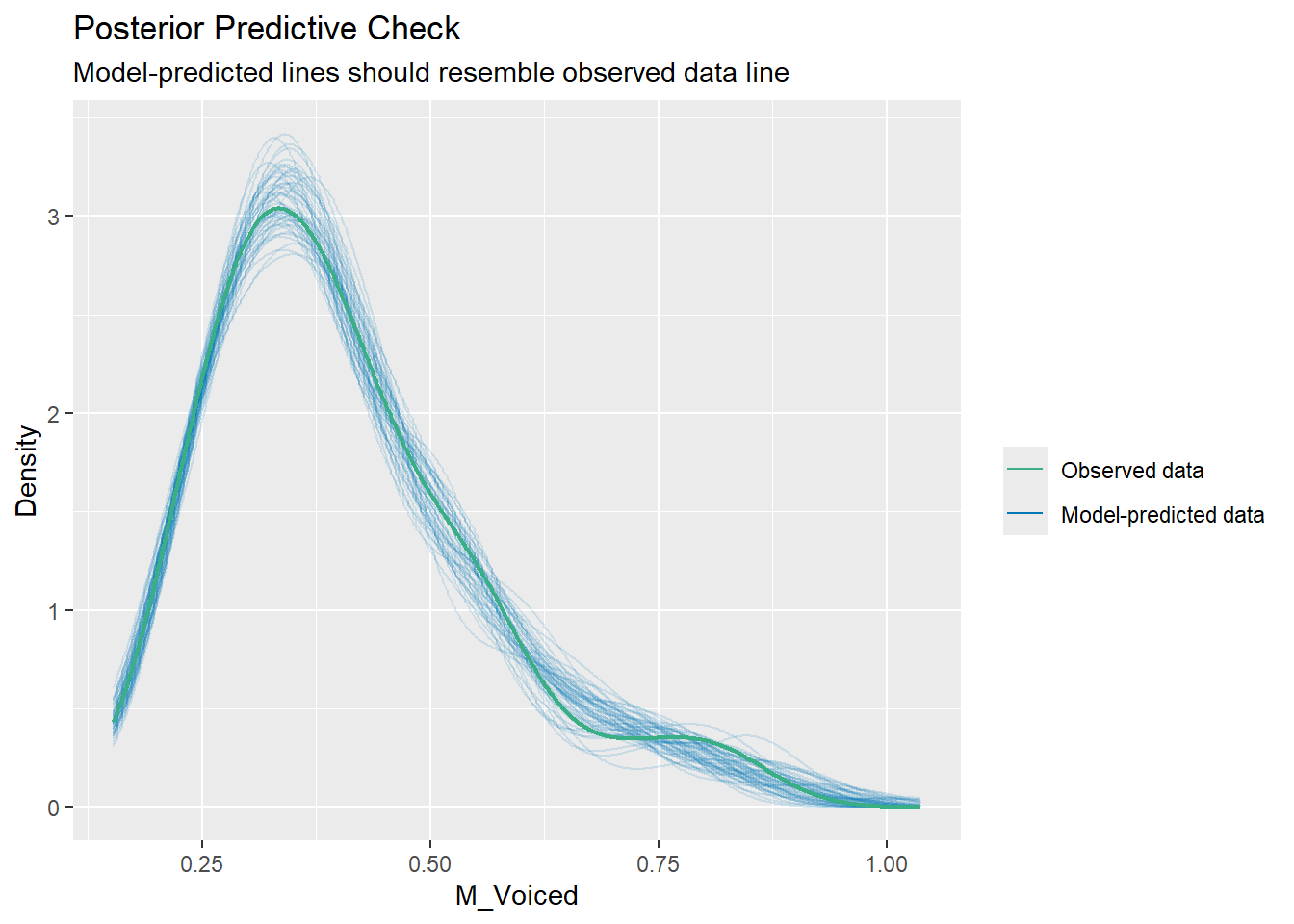

M_Voiced (R2C = 0.95, R2M = 0.05)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	-0.94	(-1.18, -0.69)	100%	1.004	2684
task1	-0.04	(-0.06, -0.02)	100%	1.000	14333
ptsd1	-0.08	(-0.26, 0.09)	80.71%	1.001	2447
demo_age	-1.14e-04	(-5.71e-03, 5.38e-03)	51.60%	1.003	2736
demo_sex1	-0.06	(-0.24, 0.11)	77.29%	1.004	2631
demo_nonwhite1	1.67e-03	(-0.20, 0.20)	50.70%	1.007	2856
task1:ptsd1	1.64e-03	(-0.04, 0.05)	52.92%	1.000	14552

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.08	(0.07, 0.09)	100%	1.000	11793

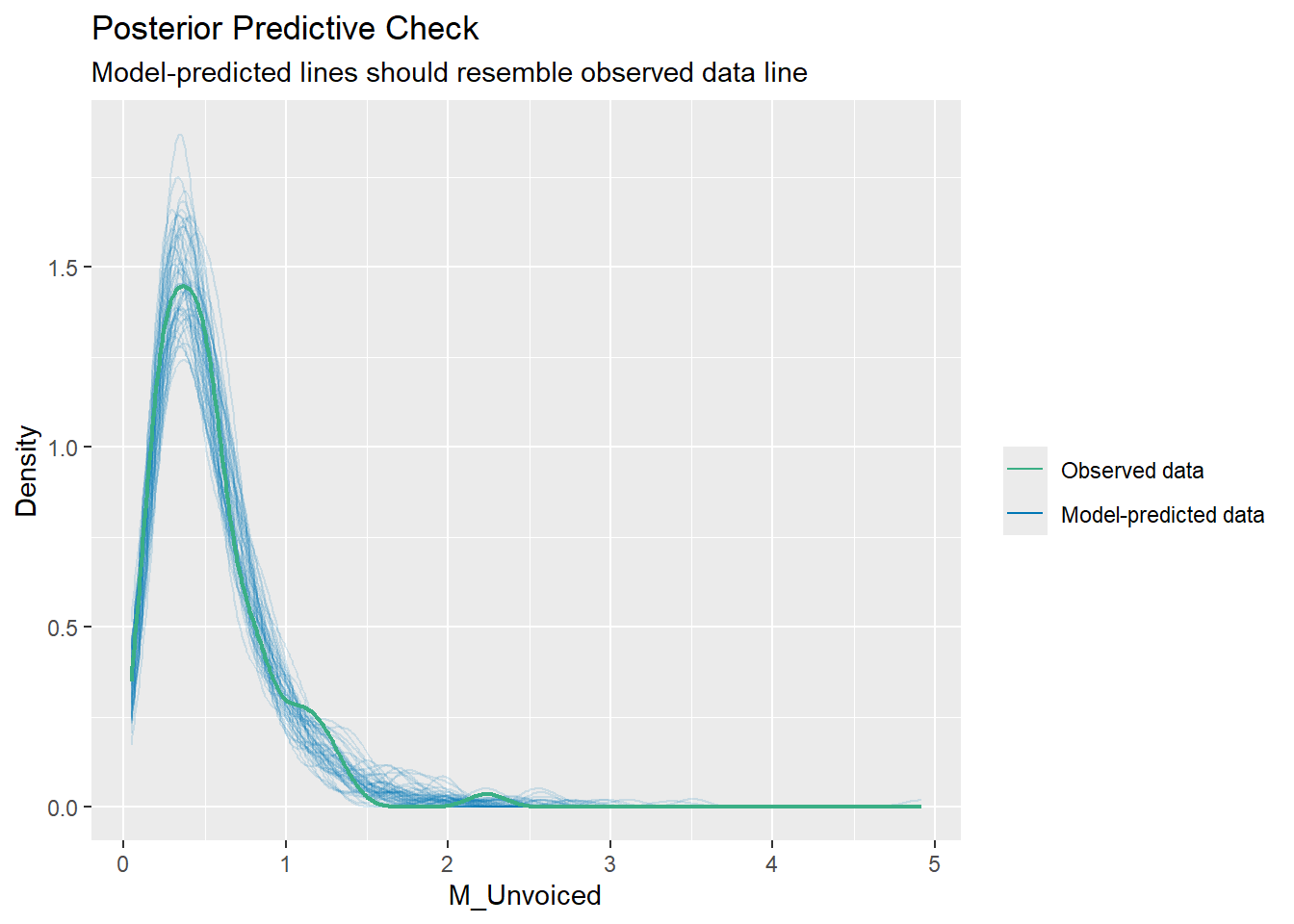

M_Unvoiced (R2C = 0.46, R2M = 0.09)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	-0.72	(-1.08, -0.36)	100%	1.001	5188
task1	0.18	(0.05, 0.30)	99.75%	1.002	6469
ptsd1	0.12	(-0.15, 0.37)	81.23%	1.001	4724
demo_age	-5.05e-03	(-0.01, 3.21e-03)	88.88%	1.001	5248
demo_sex1	0.21	(-0.05, 0.46)	94.49%	1.001	4473
demo_nonwhite1	-0.23	(-0.52, 0.08)	92.76%	1.001	5079
task1:ptsd1	-0.15	(-0.40, 0.11)	87.71%	1.000	5903

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.44	(0.38, 0.51)	100%	1.001	5045

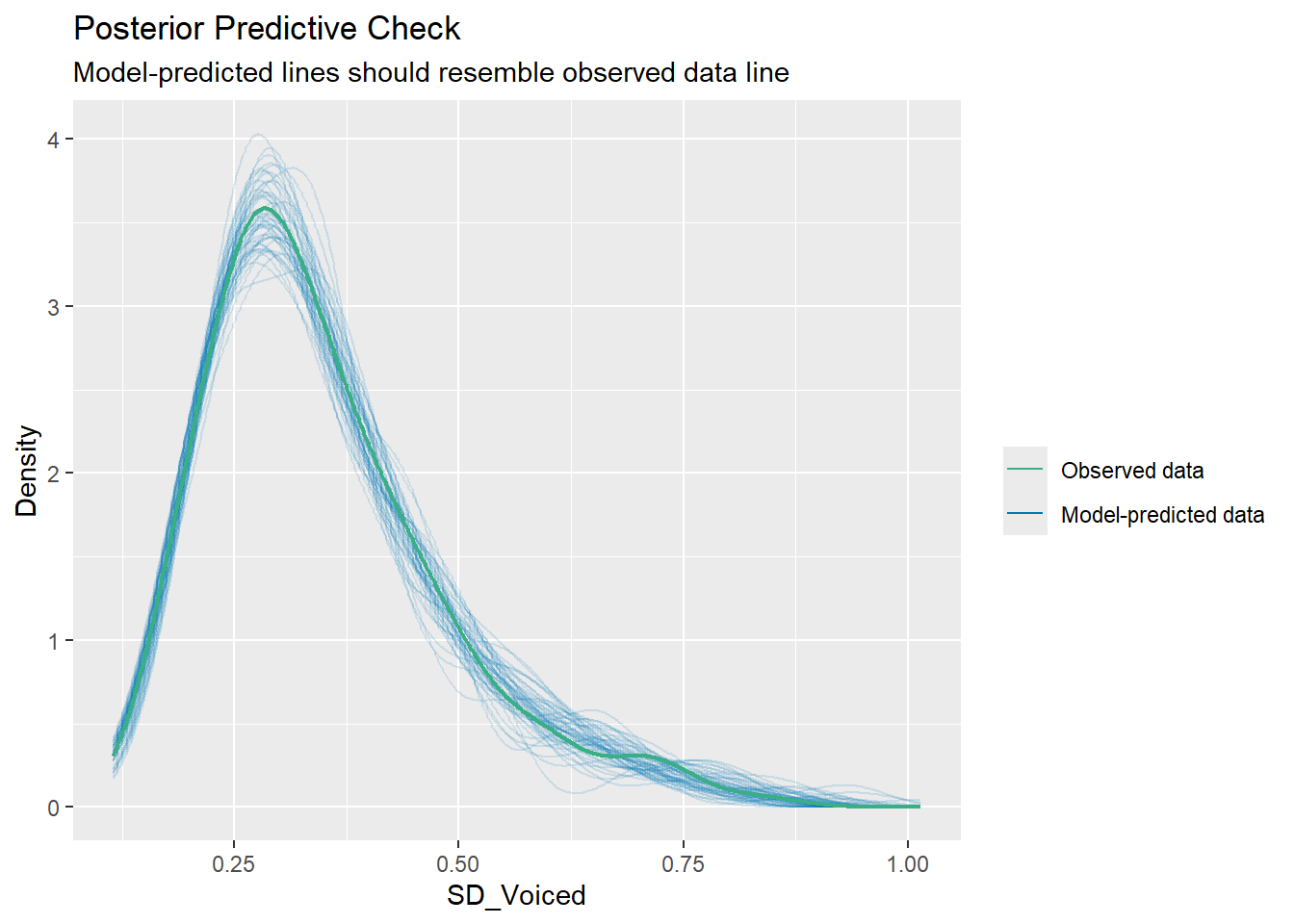

SD_Voiced (R2C = 0.95, R2M = 0.08)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	-1.08	(-1.32, -0.84)	100%	1.003	2904
task1	-0.05	(-0.08, -0.03)	99.97%	1.000	15220
ptsd1	-0.05	(-0.22, 0.12)	71.23%	1.002	2872
demo_age	-2.20e-04	(-5.64e-03, 5.36e-03)	53.24%	1.004	2641
demo_sex1	-0.15	(-0.33, 8.12e-03)	96.88%	1.005	2788
demo_nonwhite1	6.00e-04	(-0.20, 0.21)	50.24%	1.003	2511
task1:ptsd1	8.42e-04	(-0.05, 0.05)	51.43%	1.000	15512

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.08	(0.07, 0.10)	100%	1.000	12441

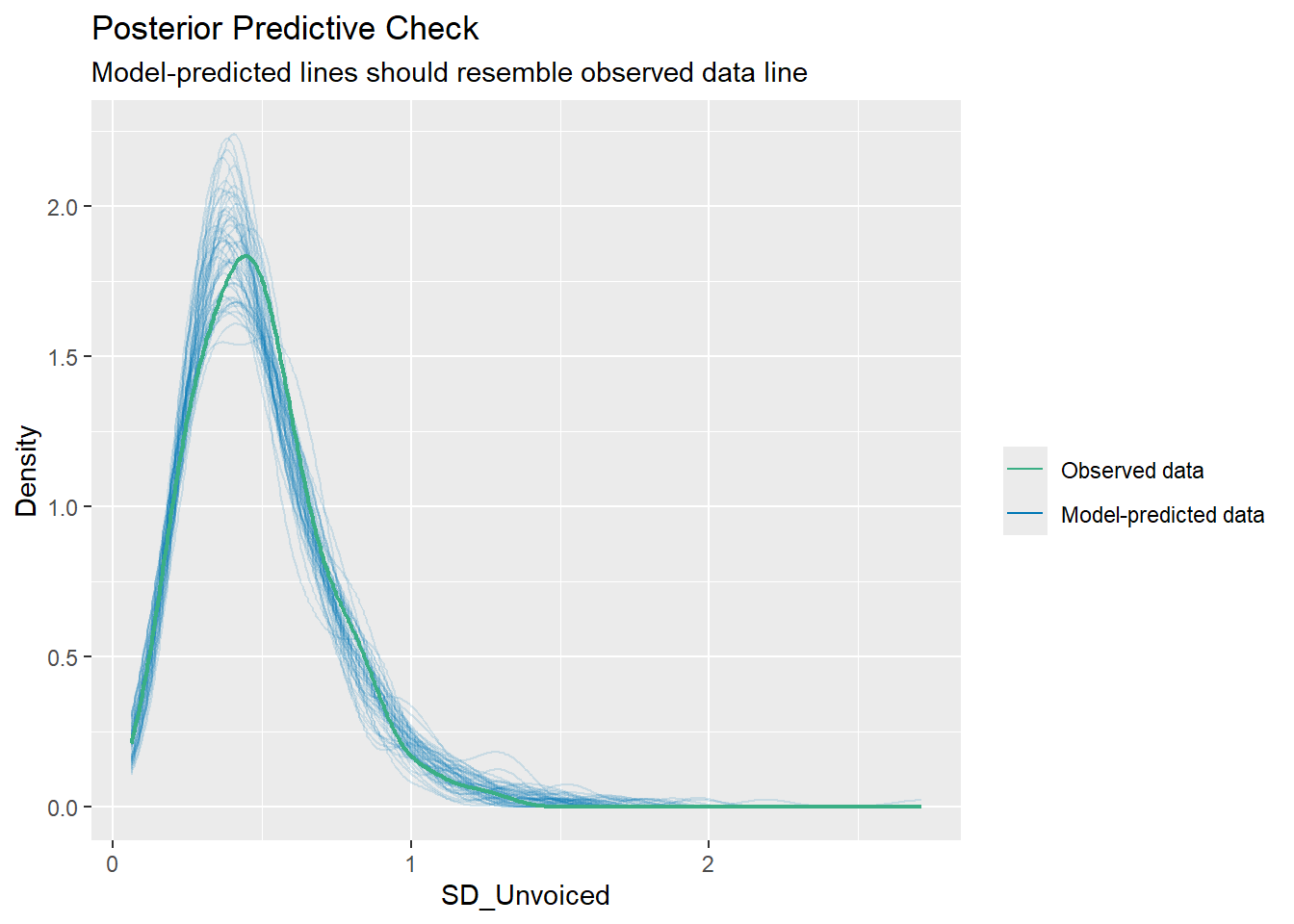

SD_Unvoiced (R2C = 0.71, R2M = 0.17)

Fixed Effects
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
(Intercept)	-0.86	(-1.15, -0.56)	100%	1.001	3844
task1	0.25	(0.18, 0.33)	100%	1.001	4984
ptsd1	0.18	(-0.03, 0.39)	95.36%	1.001	4488
demo_age	-1.22e-03	(-8.01e-03, 5.28e-03)	64.10%	1.001	3502
demo_sex1	0.15	(-0.05, 0.35)	92.73%	1.001	3762
demo_nonwhite1	-0.17	(-0.41, 0.07)	91.38%	1.002	4686
task1:ptsd1	-0.23	(-0.38, -0.08)	99.91%	1.001	5507

Sigma
Parameter	Median	95% CI	pd	Rhat	ESS (tail)
sigma	0.25	(0.22, 0.29)	100%	1.001	4773

Results Tables

Code

all_models <- c(gaussian_models, lognormal_models)

extract_model_stats <- function(model, model_name) {
  describe_posterior(model, effects = "fixed", component = "conditional", test = "pd") |>
    as_tibble() |>
    filter(str_detect(Parameter, "task|ptsd")) |>
    mutate(
      stars = case_when(
        pd >= 0.995 ~ "***",
        pd >= 0.985 ~ "**",
        pd >= 0.975 ~ "*",
        TRUE        ~ ""
      ),
      formatted_stat = sprintf("%.2f [%.2f, %.2f]%s", Median, CI_low, CI_high, stars),

      Term = case_when(
        str_detect(Parameter, ":") ~ "Interaction",
        str_detect(Parameter, "task") ~ "Main_Task",
        str_detect(Parameter, "ptsd") ~ "Main_PTSD",
        TRUE ~ Parameter
      )
    ) |>
    select(Term, formatted_stat) |>
    pivot_wider(names_from = Term, values_from = formatted_stat) |>
    mutate(Feature = model_name, .before = 1)
}

table_data <- imap(all_models, \(model, name) extract_model_stats(model, name)) |>
  list_rbind()

final_table <-
  flextable(table_data) |>
  set_header_labels(
    Feature = "Feature",
    Main_Task = "Main Effect: Task",
    Main_PTSD = "Main Effect: PTSD",
    Interaction = "Task × PTSD Effect"
  ) |>
  autofit() |>
  add_footer_lines("Note: Estimates are median posterior values on the link scale (identity, log, or logit). Models control for age, sex, and race. Brackets indicate 95% Credible Intervals. * pd > 97.5%, ** pd > 98.5%, *** pd > 99.5%. ")

final_table

Feature	Main Effect: Task	Main Effect: PTSD	Task × PTSD Effect
CPPS	-0.12 [-0.21, -0.03]**	-0.57 [-1.27, 0.17]	-0.03 [-0.21, 0.15]
H1H2	0.08 [-0.09, 0.25]	-1.01 [-2.09, 0.11]	-0.64 [-0.96, -0.31]***
SD_Loudness	0.09 [0.06, 0.12]***	0.08 [-0.02, 0.18]	-0.06 [-0.13, 0.00]
SD_Pitch	0.01 [-0.03, 0.04]	0.15 [-0.03, 0.34]	0.04 [-0.04, 0.12]
PSR	-0.03 [-0.06, 0.00]	-0.03 [-0.16, 0.09]	0.04 [-0.02, 0.10]
M_Voiced	-0.04 [-0.06, -0.02]***	-0.08 [-0.26, 0.09]	0.00 [-0.04, 0.05]
M_Unvoiced	0.18 [0.05, 0.30]***	0.12 [-0.15, 0.37]	-0.15 [-0.40, 0.11]
SD_Voiced	-0.05 [-0.08, -0.03]***	-0.05 [-0.22, 0.12]	0.00 [-0.05, 0.05]
SD_Unvoiced	0.25 [0.18, 0.33]***	0.18 [-0.03, 0.39]	-0.23 [-0.38, -0.08]***
Note: Estimates are median posterior values on the link scale (identity, log, or logit). Models control for age, sex, and race. Brackets indicate 95% Credible Intervals. * pd > 97.5%, pd > 98.5%, * pd > 99.5%.

Code

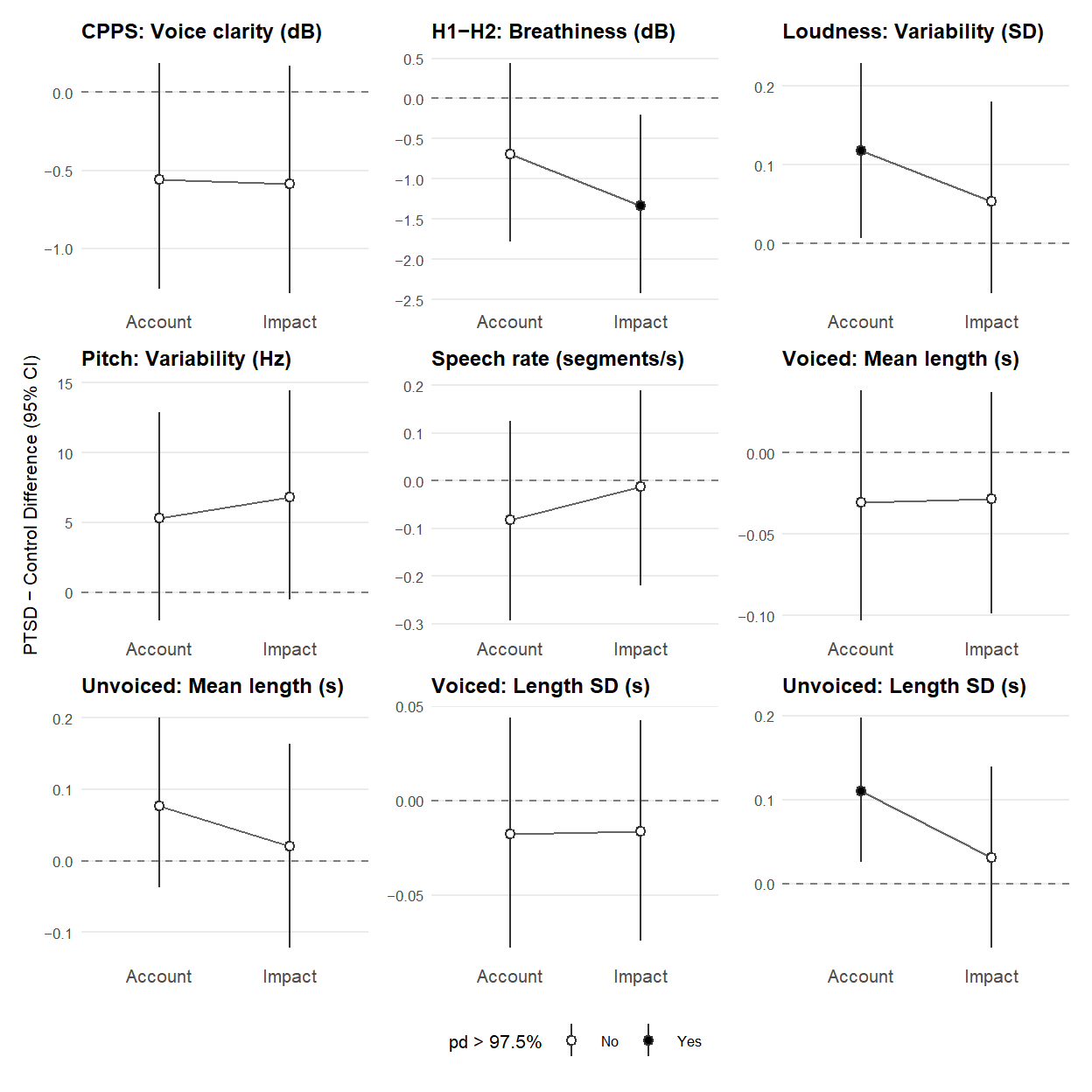

# Simple group effects (PTSD - Control) within each task on the response scale,
# averaged over sex and race (equal weights, matching the effect coding) at the
# mean age, with random intercepts at zero
extract_group_deltas <- function(model, model_name) {
  ec <- estimate_contrasts(model, contrast = "ptsd", by = "task", re_formula = NA) |>
    as.data.frame()
  stopifnot(all(ec$Level1 == "1" & ec$Level2 == "0"))  # PTSD minus Control
  ec |>
    transmute(
      Feature = model_name,
      Task = as.character(task),
      Estimate = Median,
      CI_Low = CI_low,
      CI_High = CI_high,
      pd
    )
}

group_delta_results <- imap(all_models, \(model, name) {
  extract_group_deltas(model, name)
}) |> list_rbind()

group_delta_table <-
  group_delta_results |>
  mutate(Feature = gsub("_", " ", Feature)) |>
  flextable() |>
  colformat_double(
    j = c("Estimate", "CI_Low", "CI_High"),
    digits = 3
  ) |>
  colformat_double(
    j = "pd",
    digits = 3
  ) |>
  set_header_labels(
    Feature = "Feature",
    Task = "Task",
    Estimate = "PTSD Δ", # PTSD minus Control
    CI_Low = "Lower 95% CI",
    CI_High = "Upper 95% CI",
    pd = "pd"
  ) |>
  autofit() |>
  italic(j = "pd", part = "header") |>
  bold(i = ~ pd > 0.975, j = c("Estimate", "pd")) |>
  add_footer_lines("Note: PTSD Δ is the estimated difference (PTSD - Control) on the response scale, averaged over sex and race at the mean age. pd = Probability of Direction. Bold rows indicate pd > 0.975.")

group_delta_table

Feature	Task	PTSD Δ	Lower 95% CI	Upper 95% CI	pd
CPPS	Account	-0.558	-1.259	0.190	0.928
CPPS	Impact	-0.588	-1.287	0.169	0.936
H1H2	Account	-0.688	-1.781	0.445	0.887
H1H2	Impact	-1.331	-2.422	-0.204	0.989
SD Loudness	Account	0.118	0.007	0.229	0.982
SD Loudness	Impact	0.053	-0.063	0.180	0.814
SD Pitch	Account	5.314	-2.025	12.870	0.923
SD Pitch	Impact	6.784	-0.547	14.476	0.965
PSR	Account	-0.081	-0.293	0.125	0.769
PSR	Impact	-0.013	-0.220	0.190	0.546
M Voiced	Account	-0.030	-0.103	0.039	0.807
M Voiced	Impact	-0.028	-0.099	0.037	0.801
M Unvoiced	Account	0.077	-0.038	0.201	0.907
M Unvoiced	Impact	0.020	-0.122	0.164	0.604
SD Voiced	Account	-0.018	-0.078	0.044	0.710
SD Voiced	Impact	-0.016	-0.074	0.042	0.711
SD Unvoiced	Account	0.110	0.025	0.198	0.995
SD Unvoiced	Impact	0.031	-0.076	0.140	0.721
Note: PTSD Δ is the estimated difference (PTSD - Control) on the response scale, averaged over sex and race at the mean age. pd = Probability of Direction. Bold rows indicate pd > 0.975.

Results Figures

Code

plot_titles <- c(
  "CPPS: Voice clarity (dB)",
  "H1−H2: Breathiness (dB)",
  "Loudness: Variability (SD)",
  "Pitch: Variability (Hz)",
  "Speech rate (segments/s)",
  "Voiced: Mean length (s)",
  "Unvoiced: Mean length (s)",
  "Voiced: Length SD (s)",
  "Unvoiced: Length SD (s)"
)

# Plot the simple group effects from the table above: PTSD minus Control within
# each task, with 95% credible intervals; filled points have pd > 97.5%
make_model_plot <- function(name, title) {
  d <- group_delta_results |>
    filter(Feature == name) |>
    mutate(
      Task = factor(Task, levels = c("Account", "Impact")),
      credible = factor(pd > 0.975, levels = c(FALSE, TRUE), labels = c("No", "Yes"))
    )
  ggplot(d, aes(x = Task, y = Estimate, group = 1)) +
    geom_hline(yintercept = 0, linetype = "dashed", color = "grey50") +
    geom_line(color = "grey40") +
    geom_pointrange(
      aes(ymin = CI_Low, ymax = CI_High, fill = credible),
      shape = 21, size = 0.4, color = "grey20", show.legend = TRUE
    ) +
    scale_fill_manual(values = c(No = "white", Yes = "black"), limits = c("No", "Yes"), drop = FALSE) +
    # typographic minus signs on the y-axis (Cairo otherwise draws a hyphen)
    scale_y_continuous(labels = \(x) sub("^-", "\u2212", format(x, trim = TRUE))) +
    labs(title = title, x = NULL, y = "PTSD − Control Difference (95% CI)", fill = "pd > 97.5%") +
    theme_minimal(base_size = 8) +
    theme(
      plot.title = element_text(size = 9, face = "bold"),
      axis.text.x = element_text(size = 8),
      panel.grid.minor = element_blank(),
      panel.grid.major.x = element_blank()
    )
}

plot_list <- map2(names(all_models), plot_titles, make_model_plot)

combined_plot <- wrap_plots(plot_list, ncol = 3) +
  plot_layout(guides = "collect", axis_titles = "collect") &
  theme(legend.position = "bottom")

combined_plot

Code

# Cairo embeds fonts and renders hyphens and minus signs correctly
ggsave("vocal.pdf", width = 6.5, height = 6.5, units = "in", device = cairo_pdf)
ggsave("vocal.png", width = 6.5, height = 6.5, units = "in", dpi = 600, device = ragg::agg_png, bg = "white")

Diagnostics

Click to show figures

Code

walk(all_models, \(x) print(check_predictions(x, type = "density", allow_new_levels = TRUE)))
